D Activator-XTM Neck

D Activator-XTM Neck
SKU
DP221CR
Price
$84.99
Pickup Color
Pickup Pole Pieces

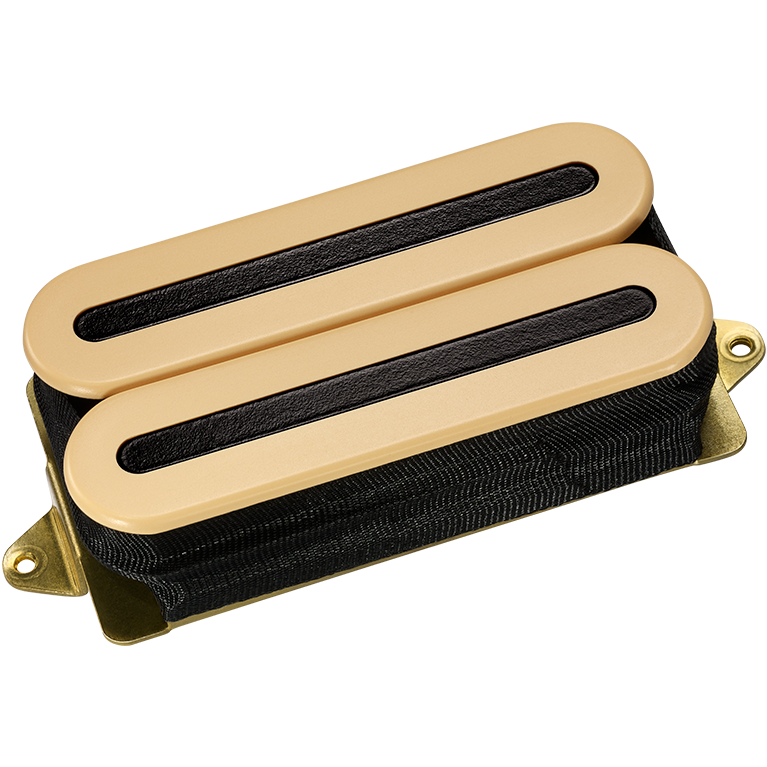

For nearly 30 years, the DiMarzio® X2N® has been the top choice for all-out power. In the last couple of years, we've developed totally new ways to combine power with clarity, which first resulted in the D Activator™. Now we bring you the D Activator-X™ Neck Model. It features the same striking look as the X2N®, but we've adjusted the output and tuned the coils to different frequencies to create a powerful sound wide open with a surprisingly clean sound when the volume control is rolled down, even with extreme metal and high-gain amps. The neck model is designed to produce a highly focussed attack centered on the upper mid range, with less magnet pull and output in order to balance perfectly with the Bridge model. The D Activator-X™ Neck Model features universal spacing for both standard and F-spaced applications.

As you can see from the specs, the D Activator-X™ Neck Model has a lot less output than the Bridge Model. What is often forgotten is that strings generate much more output voltage over the neck position because they vibrate more strongly there than over the bridge position, so the neck and bridge models actually balance very well with each other. The neck model also has a weaker magnetic field, so it doesn't interfere with sustain or intonation. Both models were primarily designed for heavy music, but they're also very good for clean, bright sounds in split and parallel modes.



500K Volume Pot, 500K Tone Pot, .022 uF Capacitor

Quick Connect
No
Wiring
4 Conductor
Magnet
Ceramic
Resistance
11.29 Kohm
Year of Introduction
2008

Tone Guide

Output
300
Bass
6.5
Mid
5.5
Treble
4.5
